The IMUTag: An Overview

An introduction for people who will deploy IMUTags and analyze the data they produce. Covers what the tag is, what it records and how well, how you use it, and what it cannot yet do.

Status: 2026-10-04. Every figure here comes from breakout hardware; the integrated imutag-smps board has not yet been fabricated.

---

1. Overview

The IMUTag is an ultralight archival datalogger for recording how a bird moves. It writes acceleration, rotation rate, magnetic field, barometric pressure and temperature to on-board flash memory, and you read the data out after recovering the tag.

It has no radio and no position fix. Nothing is transmitted in the field, so the tag must be recaptured to get the data. In exchange it is small, it draws almost nothing while waiting, and it samples fast enough to resolve individual wingbeats.

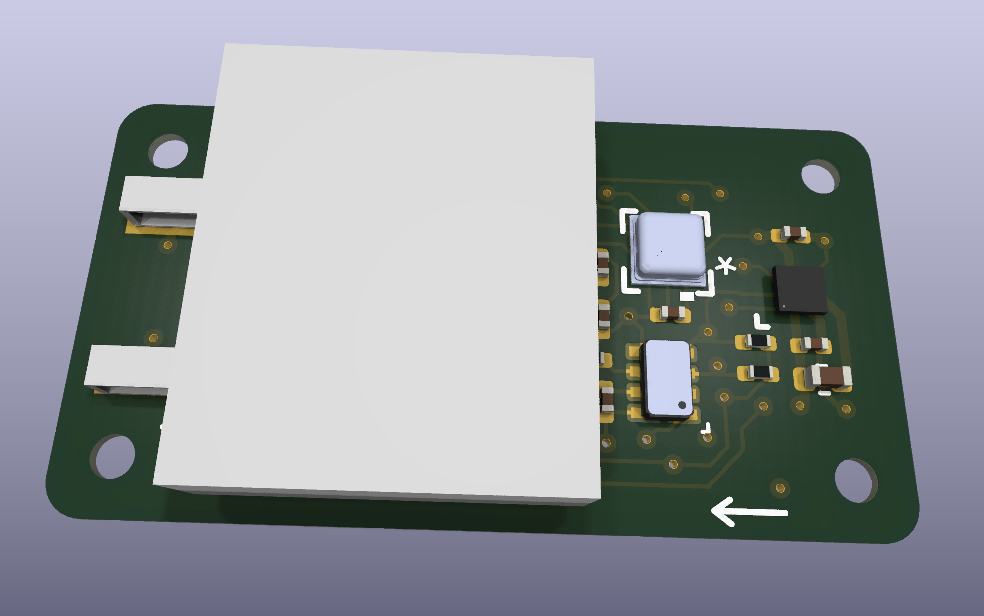

The white block is the battery, which sits over most of the board and covers the majority of the top-side components.

At a glance

Sample rates	100, 200, 400, 800 or 1600 Hz, chosen before deployment
Channels	3-axis acceleration, 3-axis rotation, 3-axis magnetic field, pressure, temperature
Storage	2 Gbit (256 MiB) flash on the tag -- no radio, no live link
Typical deployment	13.7 hours of continuous recording at 400 Hz on a 12 mAh cell
Waiting, armed	5.5-6.7 uA -- 74 to 91 days on a 12 mAh cell, so the tag can sit for months before a recording window opens
Clock	+/-1 ppm, about 4 ms of drift per hour
Getting data out	A SQLite file, over a wired probe, after recovery

What it measures

Channel	Recorded at	What it is useful for
Acceleration, 3 axes	the full configured rate	Wingbeats, takeoff and landing, body posture, activity budgets
Rotation rate, 3 axes	the full configured rate	Turns, rolls, and changes in body attitude
Magnetic field, 3 axes	one tenth of the configured rate	Heading reference; combined with the other two, orientation
Barometric pressure	one tenth of the configured rate	Altitude, and climb and descent rate
Temperature	once per stored page	Ambient temperature at the sensor

The accelerometer and gyroscope run at whatever rate you choose. The magnetometer and pressure sensor are recorded ten times less often, which is a deliberate trade: they cost current and they change more slowly than a wingbeat does.

How you use one

1. Connect. The tag attaches through a small wired probe. Its clock is synchronized to the computer's.
2. Configure and arm. You choose the sample rate and the measurement ranges, then start collection.
3. Deploy. The tag records until it is stopped, the battery runs down, or the flash fills.
4. Recover and download. Attach it again and download to a single SQLite file.
5. Look at the data. sensorviz plots everything in that file; the file is also directly readable from Python, R or MATLAB.

Current status

The firmware runs on breakout hardware: the tag's processor, sensors and flash on a daughter card, powered through a separate breakout carrying the same TPS62840 regulator the final board uses. On that hardware it has been through release checks and a full sweep of every sample rate, each with a verified download, and those measurements are the figures in this overview. The integrated imutag-smps board has passed design checks but has not yet been fabricated, so no figure here comes from it.

---

2. Hardware

The tag is one microcontroller, four sensor devices, a flash chip and a precision clock, all running from a single 1.8 V rail. You do not need the wiring detail to use it, but two things about the arrangement do affect your data.

graph LR
    IMU["<b>LSM6DSV</b><br/>Accelerometer + gyroscope<br/>100-1600 Hz, 16-bit<br/><i>Sample clock from the RTC</i>"]
    PRS["<b>BMP581</b><br/>Pressure + temperature<br/><i>Altitude, climb and descent</i>"]
    MAG["<b>BMM350</b><br/>Magnetometer<br/><i>Heading reference, +/-2000 uT</i>"]
    RTC["<b>RV-3028-C8</b><br/>Real-time clock, +/-1 ppm<br/><i>Sets the sampling timebase</i>"]

    MCU["<b>STM32U375</b><br/>Reads the sensors,<br/>timestamps samples,<br/>packs them into flash<br/><i>5.5-6.7 uA while waiting</i>"]

    SWD["<b>Wired probe connector</b><br/><i>Arm the tag, download data</i>"]
    NAND["<b>GD5F2GM7RE</b><br/>2 Gbit flash, 256 MiB<br/>About 13.7 h at 400 Hz<br/><i>10-year data retention</i>"]

    PWR["<b>Power</b><br/>12 mAh cell through a 1.8 V regulator<br/><i>5.5-6.7 uA waiting, 0.66 mA recording at 400 Hz</i>"]

    IMU --- MCU
    PRS --- MCU
    MAG --- MCU
    RTC --- MCU
    MCU --- SWD
    MCU --- NAND
    MCU --- PWR

First, all of the timing is derived from the real-time clock (RTC) chip, which provides a 32.768 kHz timing signal; the RTC carries stored correction parameters that bring it to +/-1 ppm at 25 C. Second, there is one wired connector and it does everything: arming, self-test and download.

What is fitted

Part	Role	Size and capacity	Datasheet
LSM6DSV	Accelerometer and gyroscope	LGA-14L 2.5x3.0 mm; 16-bit output; ranges selected per deployment	lsm6dsv.pdf
BMM350	Magnetometer, heading reference	WLCSP 1.28x1.28 mm; +/-2000 uT on all three axes	bst-bmm350-ds001.pdf
BMP581	Pressure and temperature, altitude	LGA 2.0x2.0 mm; 300-1250 hPa	bst-bmp581-ds004.pdf
GD5F2GM7RE	Stores the recording	WSON-8 8x6 mm; 2 Gbit (256 MiB); 10-year data retention	datasheet
RV-3028-C8	Keeps time and paces the sampling	SON-8 2.0x1.2 mm; +/-1 ppm factory-trimmed; 70 nA	RV-3028-C8.pdf
STM32U375	Reads the sensors and writes the flash	UFQFPN32 5x5 mm; 1 MB program memory, 256 KB RAM	stm32u375ce.pdf
TPS62840	Makes the 1.8 V rail everything runs from	WCSP-6 0.97x1.47 mm; 60 nA quiescent	tps62840.pdf

What each sensor resolves, and how noisy it is, is in section 3 rather than here.

The IMU is a plain LSM6DSV, confirmed against the schematic and the production BOM (LCSC C5267399). The firmware module that drives it is named sensor_imu_lsm6dsv16x for historical reasons; the part fitted is the LSM6DSV and the figures in section 3.2 are its.

What the hardware means for your data

These are the limits worth knowing before you plan a study.

• You must recover the tag. There is no radio and no position fix of any kind. A tag that is not recaptured yields nothing.
• Recording time is bounded, and by different things at different rates. Below 400 Hz the battery gives out first; at 400 Hz and above the flash fills first. Section 3.5 works this through.
• The magnetometer and pressure sensor are sampled ten times less often than the motion sensors. For heading and altitude this is ample. It does mean the three sensor families do not share sample times, which matters when you combine them.
• In flight, the accelerometer does not measure gravity. It measures specific force. During flapping, gravity is a small part of what the accelerometer sees, so the usual trick of using it to find "down" does not work well in the interesting parts of the record.
• Pressure is excellent in relative terms and modest in absolute terms. Changes of a few pascals -- centimetres of altitude -- are resolvable; absolute altitude carries a +/-30 Pa offset and a few metres of uncertainty from weather.
• Clock accuracy degrades away from room temperature. The +/-1 ppm figure holds near 25 C, and the crystal slows as roughly 0.035 ppm per degree squared either side of it. This is not currently corrected for, though the tag does record the temperature needed to do so.

---

3. What the Tag Records

You configure one thing -- the sample rate -- and everything else follows from it. Higher rates resolve finer movement, produce proportionally more data, and shorten the deployment.

3.1 Sample rates

Sample rate	Magnetic, pressure, temperature	Data produced	Flash full after	Battery, 12 mAh	Runs out first
100 Hz	10 Hz	1.37 kB/s	54.6 h	22.3 h	battery
200 Hz	20 Hz	2.73 kB/s	27.3 h	20.7 h	battery
400 Hz	40 Hz	5.46 kB/s	13.7 h	18.1 h	flash
800 Hz	80 Hz	10.9 kB/s	6.83 h	14.5 h	flash
1600 Hz	160 Hz	21.8 kB/s	3.41 h	12.0 h	flash

Acceleration and rotation are always recorded at the rate you select. Whichever of the last two columns is smaller is what you actually get. Battery figures are measured; section 3.5 has the currents behind them.

For scale: a small songbird's wingbeat is roughly 10-30 Hz, so 400 Hz gives on the order of 15-40 samples per wingbeat.

One consequence of the ten-to-one ratio is worth planning around. The magnetic, pressure and temperature channels do not share sample times with the motion channels, and occasionally a slow-channel reading is missing altogether -- it is recorded as a gap rather than as a repeat of the previous value. That is the honest representation, but analysis code has to expect gaps rather than a dense, aligned matrix.

3.2 Resolution, accuracy and noise

This is the table to work from when deciding whether a feature in your data is real. Resolution depends on the measurement range you select; the noise column is what actually limits you.

Channel	Units in the file	Resolution	Range	Noise and accuracy
Acceleration	mg	0.061 / 0.122 / 0.244 / 0.488 mg per count at +/-2 / 4 / 8 / 16 g	+/-2 g to +/-16 g, selectable	60 ug/sqrt(Hz) noise density; offset +/-12 mg typical
Rotation rate	degrees per second	4.375 / 8.75 / 17.5 / 35 / 70 / 140 mdps per count	+/-125 to +/-4000 dps, selectable	2.8 mdps/sqrt(Hz) noise density; offset +/-1 dps typical
Magnetic field	uT	about 0.1 uT	+/-2000 uT on all three axes	190 nT rms (x, y), 450 nT rms (z); +/-25 uT offset before calibration, +/-2 uT after
Pressure	mbar	0.016 Pa	300-1250 hPa	0.08-0.8 Pa rms; +/-6 Pa relative, +/-30 Pa absolute; drifts +/-10 Pa per year
Temperature	C	0.01 C	-40 to +85 C	+/-0.5 C
Time	seconds since epoch, ~1 ms steps	~0.98 ms	--	+/-1 ppm near 25 C -- about 4 ms drift per hour

3.3 Reading those numbers

Noise, not resolution, is your floor. Noise density times the square root of your bandwidth gives the broadband noise you will actually see. At 400 Hz the accelerometer contributes about 1.2 mg rms -- roughly ten times the 0.122 mg step size at +/-4 g. The gyroscope behaves the same way. The practical consequence is that choosing a wider measurement range costs you almost nothing in precision, so pick the range by what will clip, not by what will resolve. If in doubt, go wider: a clipped wingbeat peak is unrecoverable, whereas the extra quantization noise is invisible under the sensor's own noise.

Pressure is the precise channel. At the oversampling used, the sensor resolves single pascals -- about 8 cm of altitude. Relative altitude over seconds to minutes is genuinely good. Absolute altitude is not: the +/-30 Pa absolute accuracy is a few metres, and weather moves sea-level pressure far more than that over a day.

Magnetometer data needs calibration to be useful. Uncalibrated, the zero-field offset is +/-25 uT against an Earth field of roughly 50 uT. After the calibration procedure it falls to about +/-2 uT. Calibration constants are stored on the tag and copied into every download, and the viewer applies them automatically.

3.4 How samples are timed

Every sample carries a time, and those times are more trustworthy than they would be on most loggers, because the sampling is paced by the +/-1 ppm real-time clock rather than by the motion sensor's own oscillator.

Times are reconstructed by counting samples from the start of a recording segment and scaling by the clock's measured error, which is stored in the file. Individual page timestamps are deliberately not used to re-anchor each page -- doing so would add millisecond-level jitter to an otherwise perfectly even series. The result is a smooth, evenly spaced time axis within a segment.

A new segment starts whenever the recording is interrupted -- a restart, or a gap where storage was skipped. These boundaries are marked in the file and drawn in the viewer. Treat them as real discontinuities: do not integrate or filter across one.

3.5 How long a deployment lasts

Two things end a recording: the battery runs down, or the flash fills. Which one bites first depends on the rate you chose. The currents were measured on the SMPS breakout carrying the IMUTagNandBmp581 daughter card at 3.6931 V, the voltage of a nominal 3.7 V cell, 120 s per point with a verified download at every rate. Recording draws 539 uA at 100 Hz, 662 uA at 400 Hz and 1003 uA at 1600 Hz; those currents give the battery column of the table in section 3.1. The per-rate measurements are in IMUTag power.

Idle has measured as two distinct populations on the same board and image, 5.52 uA and 6.71 uA, and which one you get is not yet understood. Plan on 74 days, the pessimistic figure. The recording currents are reproducible to better than 1%.

Below 400 Hz the battery gives out while there is still flash to spare, so a larger cell buys recording time. At 400 Hz and above the flash fills first, and a larger cell buys nothing -- only a lower rate would help. Waiting costs almost nothing either way: at a few microamps a tag can sit armed for months before a recording window opens, so it is the recording itself that is bounded, not the deployment.

---

4. Using the Tag

Three desktop tools cover the whole cycle. All of them talk to the tag through the same small wired probe.

4.1 Configuring and arming: qtmonitor

qtmonitor is where you inspect a tag and set it up. It has three tabs. Tag State shows live status -- what the tag is doing, its battery voltage, clock error, how much data it holds, and its identity and firmware version. Configuration is where you set up a recording. Error Log collects messages if something goes wrong.

Four settings matter for an IMUTag:

Setting	Choices	What it affects
Start delay	seconds between arming and the first sample	Lets you fit the tag before recording starts
Sample rate	100, 200, 400, 800, 1600 Hz	Resolution, data volume, deployment length
Accelerometer range	+/-2, +/-4, +/-8, +/-16 g	What will clip. Pick by peak, not by precision
Gyroscope range	+/-125 to +/-4000 dps	Same

Before arming, synchronize the clock -- this is what makes timestamps comparable to anything else you record. The same tab has a self-test that checks every sensor and the flash, and it is worth running before a deployment.

Magnetometer calibration is a separate step, covered next.

4.2 Calibrating the magnetometer: qtcalibrate

The magnetometer is the one channel that needs a per-tag calibration step, for the reason given in section 3.3 -- uncalibrated, its offset is half the size of the field it is trying to measure. qtcalibrate is the tool that fixes it, and it is a once-per-tag job, not a once-per-deployment one.

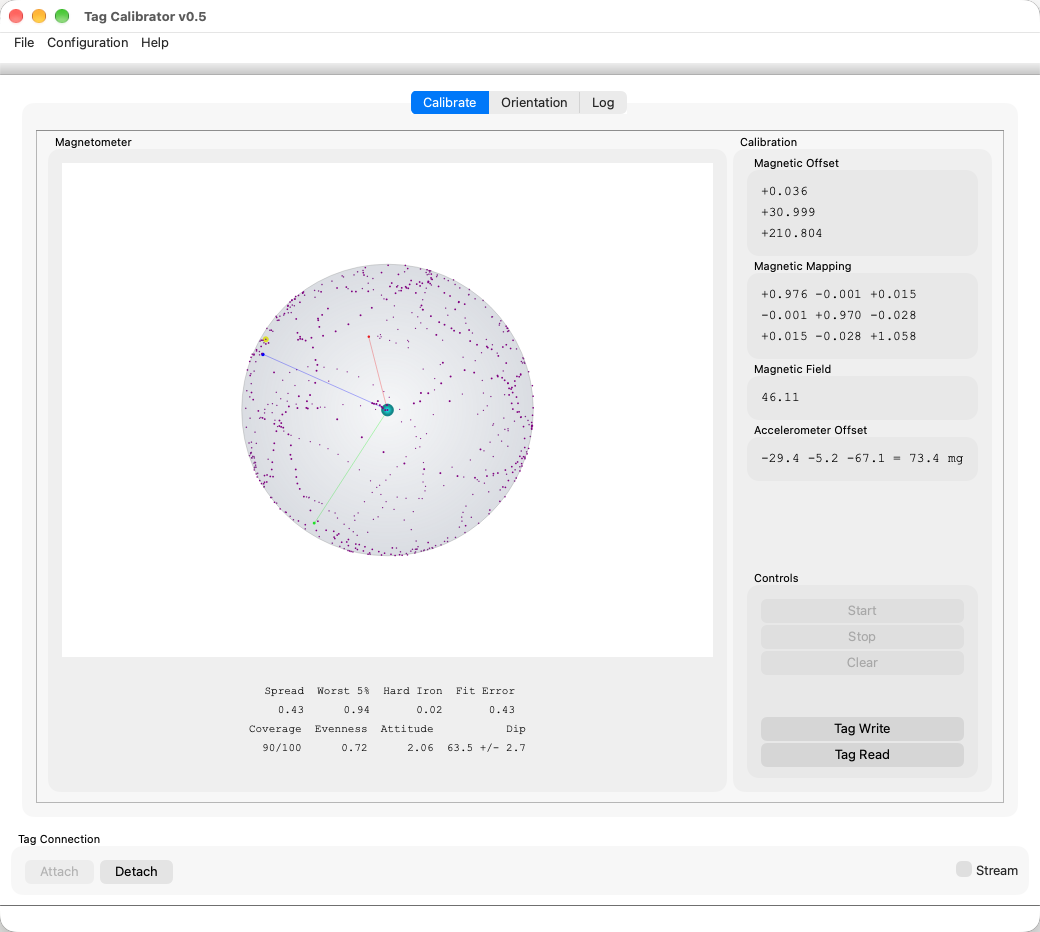

Attach the tag, press Start, and turn it through as many orientations as you can manage while samples accumulate. The plot shows where those samples fall on a sphere; what you are aiming for is even coverage, because the fit is only as good as the directions you actually visited.

Four numbers under the plot tell you whether you turned the tag enough. Gaps is how much of the sphere you missed, Variance and Wobble describe how tightly the samples sit on it, and Fit Error is how well the fitted model matches them. Lower is better on all four; if Gaps stays high, keep turning.

The fit produces a magnetic offset, a 3x3 mapping matrix and the field strength those imply. Tag Write stores them on the tag and Tag Read shows what is already there. Once written, the constants are copied into every download from that tag, and sensorviz applies them without being asked.

The Orientation tab then shows live compass heading and attitude, which is the quickest way to confirm the calibration behaves before you commit a tag to a deployment.

Step-by-step instructions and the other collection milestones are in the application guide, host/docs/src/apps/qtcalibrate.md.

4.3 Downloading

Either choose File ▸ Download Data… in qtmonitor, or use the command-line tool:

tag-dwnld -o flight042.db3

Both produce the same SQLite file. -s will stop a tag that is still recording before downloading it. A download runs from start to finish and cannot be resumed part-way, so let it finish; at full flash it moves a few hundred megabytes over the probe and takes a while.

You can download a tag as many times as you like. The data stays on the tag until you explicitly erase it, which is worth doing only once you have the file safely copied.

4.4 Looking at the data: sensorviz

sensorviz opens a downloaded file and plots everything in it. It works out what the file contains from the file itself, so there is nothing to configure per tag type.

• All channels share one elapsed-time axis, so fast and slow channels line up without resampling.
• Segment boundaries are drawn as vertical markers, so an interruption is visible rather than hidden inside a continuous-looking trace.
• It derives acceleration, rotation and magnetic-field magnitudes, and altitude from pressure with a sea-level pressure you can set.
• Magnetometer calibration is applied automatically.
• Two cursors give a readout of time and nearby values, and you can zoom between them.
• By default the derived magnitudes are shown and the raw per-axis components are hidden; you can turn any of them on.

---

5. The Data File

A download is a single SQLite file, typically named .db3. Everything is in it -- the samples, the tag's identity, the exact configuration used, the calibration constants and a record of the tag's state through the deployment. There is nothing else to keep alongside it.

SQLite is readable directly from Python, R and MATLAB, so you are not tied to the supplied viewer.

Table	One row per	What is in it
ImuAccel	motion sample	Time, and ax, ay, az in mg
ImuGyro	motion sample	Time, and gx, gy, gz in degrees per second
ImuMag	slow sample	Time, and mx, my, mz in uT, already calibrated
ImuPressure	slow sample	Time and pressure in mbar
ImuTemperature	stored page	Time and temperature in C
ImuSegment	recording segment	Where it starts, the configured rate, the clock correction applied
ImuEvent	interruption	Where a segment boundary falls and why
Calibration	calibration record	The magnetometer constants used
info	--	Tag type, serial number, firmware version, and the configuration it ran with
states	state change	Battery voltage and temperature through the deployment
streams	channel	A catalog of what is in the file, which is how the viewer discovers it

Every sample table carries ElapsedUs -- microseconds since the start of the recording, already corrected for clock error -- and a SegmentId. Join on SegmentId to get back to absolute time and the configuration in force.

SELECT ElapsedUs / 1e6 AS t, ax, ay, az
FROM ImuAccel
WHERE SegmentId = 0
ORDER BY ElapsedUs;

The full column-by-column reference is in host/docs/src/reference/sqlite-logs.md.

---

6. What Isn't There Yet

What the tag gives you today is calibrated, well-timed time series. Three things people reasonably expect from a motion logger are not there yet, and it is better to know that before planning a study around them.

6.1 Orientation

You cannot currently ask which way the bird was facing. The tag records everything needed to work it out -- rotation, acceleration and magnetic field -- but nothing yet combines them into an orientation estimate over time.

This is harder than it looks for a flying bird. The standard shortcut is to use the accelerometer to find "down", but in flapping flight the accelerometer is dominated by the bird's own accelerations rather than by gravity, so that shortcut fails exactly where the data is most interesting. Doing it properly means a filter that leans on the gyroscope during flapping and corrects from the accelerometer and magnetometer when the bird is steadier.

One advantage of archival data: because nothing has to happen in real time, the filter can be run forwards and then backwards over the whole record. That typically halves the error compared with a filter that only ever looks backwards, and it removes the settling transient at the start of every segment.

The tool this belongs in already exists: dataprocessing copies a log, adds derived channels to the copy and records which algorithm version produced them. So far it has processors for CompassTag logs only; there is no IMUTag orientation processor yet.

6.2 Position

There is no trajectory, and for horizontal position there realistically cannot be one from this sensor set. Without any position fix, dead reckoning error grows as the square of elapsed time; it is credible over seconds to tens of seconds, which may be enough for a single takeoff, landing or flapping bout, but not for a whole flight.

Vertical position is the exception and is genuinely within reach. Barometric altitude is good to a few centimetres in relative terms over short intervals, so climb and descent profiles are a well-posed product from data the tag already collects. This is the first thing worth building. Horizontal position would need a reference from outside the tag -- see the note on stereo cameras in section 6.3.

6.3 Synchronizing with video

Recording video alongside a deployment is recommended. Post-processing can eventually give accurate orientation and a drifting position estimate, but rotation and acceleration traces are hard to relate to actual behaviour on their own. Video is what lets you tell what a feature in the data really was.

This is not new ground. The software developed for Simulation-based validation of activity logger data for animal behavior studies synchronized video with accelerometer data. That capability does not yet exist in the current software.

The tag itself is well placed for it: timestamps are absolute and the clock drifts only about 4 ms per hour, so a tag synchronized before deployment should stay frame-accurate against wall-clock-stamped video for a session. What is missing is the workflow -- a way to establish the offset, somewhere to store it, and a viewer that scrubs video and traces together.

If you want to try this now, there is a method that needs nothing new: shake the tag deliberately at a noted clock time at the start and end of a session, find those shakes in the acceleration magnitude, and fit the offset from them.

Video as a position reference

Position estimated by integrating acceleration and rotation drifts with time. The pressure sensor can compensate for vertical drift and the magnetometer fixes horizontal orientation, but there is nothing on the tag that compensates for horizontal drift.

For captive studies a stereo camera is an interesting direction to consider. It would supply exactly what is missing -- a stream of time-stamped positions, extracted from the video by tracking software, to constrain the horizontal solution during post-processing. That is a larger undertaking than synchronization alone, but it is the only route to non-drifting position from this sensor set.

6.4 Also outstanding

• Clock temperature compensation. The +/-1 ppm figure is a room-temperature figure, and the tag records the temperature needed to correct for the rest, but the correction is not applied.
• Flash read robustness. Handling of unreadable pages during download is still being worked on, so a damaged page currently has no graceful path.
• The board itself. imutag-smps has not been fabricated; every figure here comes from breakout hardware.

---

Open questions

1. Is the recording schedule intentionally limited to a start delay? The stored configuration carries absolute start and stop times, but only the start delay is offered in qtmonitor for this tag type.
2. Why does idle measure as two populations? 5.52 uA and 6.71 uA on the same board and image, splitting on the day rather than the procedure. It is worth 16 days of shelf life on a 12 mAh cell. See Idle does not agree with itself across days in IMUTag power.
