Bit Tag Visualizer

Legacy text files only

Bit Tag Visualizer applies only to the legacy BitTag .txt file format. Its role has been supplanted by SensorViz, which is more general and works with the modern, portable SQLite .db3 data format.

Bit Tag Visualizer, installed as btviz, is the legacy plotting tool for human-readable BitTag monitor downloads. Use it when you need to inspect older .txt data files, choose valid experiment intervals, smooth activity records, make figures, export selected data, or build actograms.

Bit Tag Visualizer is still useful for older BitTag and BitTagNG text files, and it can also display some legacy PresTag-style pressure files.

Open a Data File

At startup the application shows only the load action.

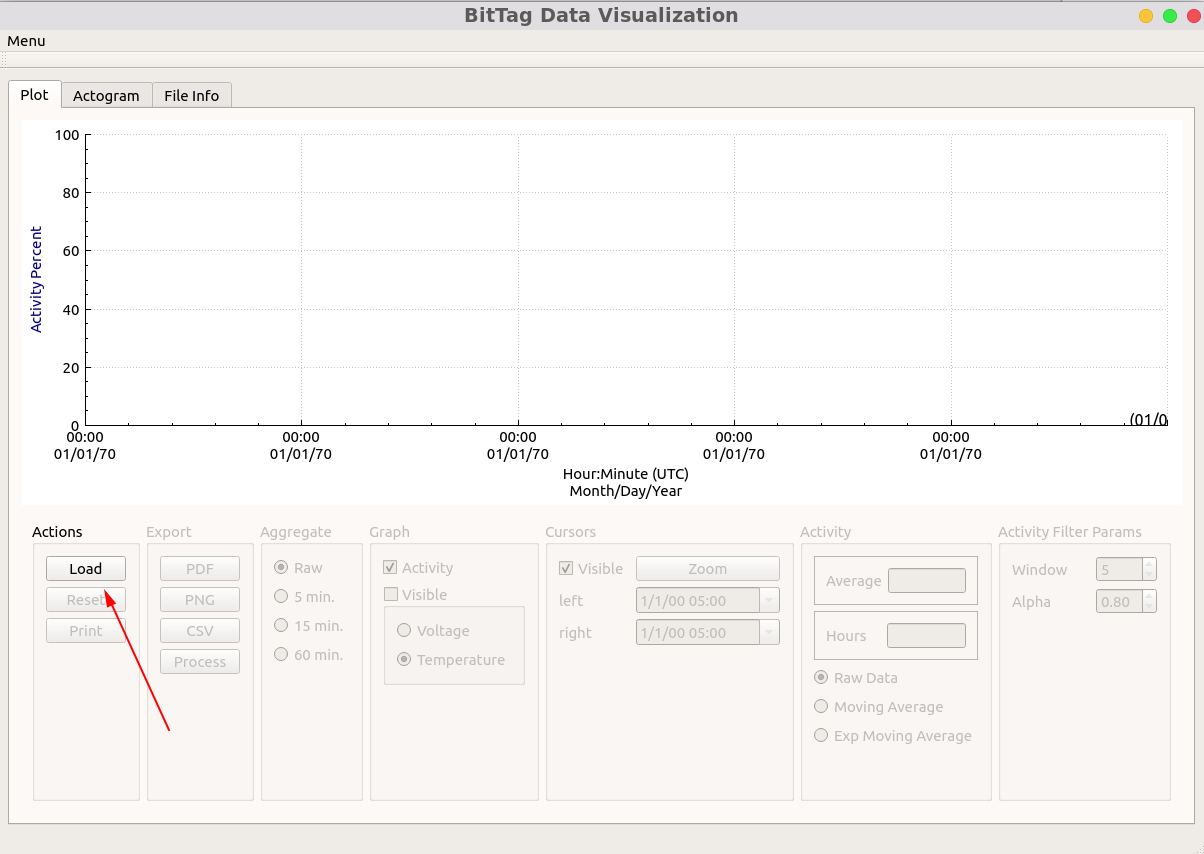

Bit Tag Visualizer startup screen

  1. Open Bit Tag Visualizer.
  2. Select Load.
  3. Choose a monitor-created .txt data file.
  4. Review the loaded time range and tag metadata in the file information area.

The file dialog filters for .txt files because legacy BitTag monitor downloads are human-readable text. Comment lines from the file are copied into the file information area, except for page markers, so the experiment configuration remains visible while you work.

After loading a BitTag activity file, the main plot shows activity over the full recorded time span.

Bit Tag Visualizer activity plot after loading a text file

Interpret Activity Percent

BitTags store activity as counts within a collection period. Bit Tag Visualizer displays those values as an activity percentage: the count of active seconds is divided by the collection period length in seconds, then shown on a 0-100 activity scale.

Long records often include non-experiment intervals before deployment or after recovery. In the example data, the quiet first and last regions are periods where the tag was running but not attached to the animal. Use the environmental and battery traces to help decide which intervals belong in the final analysis.

Temperature and Voltage

Enable the Voltage/Temperature controls to overlay one secondary trace on the right axis. Temperature uses a 0-50 C scale, and Voltage uses a 1.5-3.5 V scale.

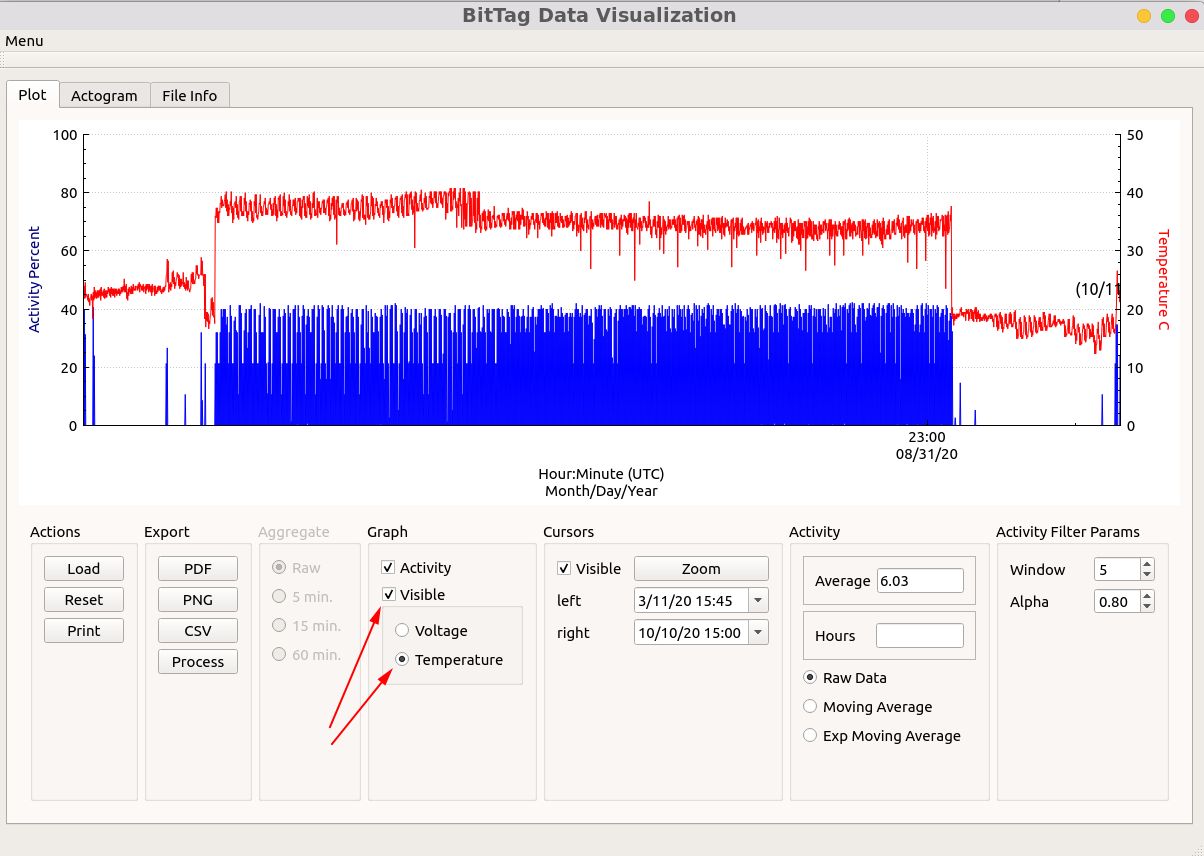

Temperature overlay in Bit Tag Visualizer

Temperature can be a useful deployment check. For example, a sustained body-like temperature can help identify when a recovered tag was still on the animal, while a return to ambient temperature can mark tag loss or post-experiment handling. Voltage helps document battery behavior and estimate battery life.

Zoom, Scroll, and Reset

Use the mouse, trackpad, or scroll wheel to zoom and pan horizontally through the record. Exact gestures vary by platform, so it is worth trying the normal scroll and pinch gestures for your operating system.

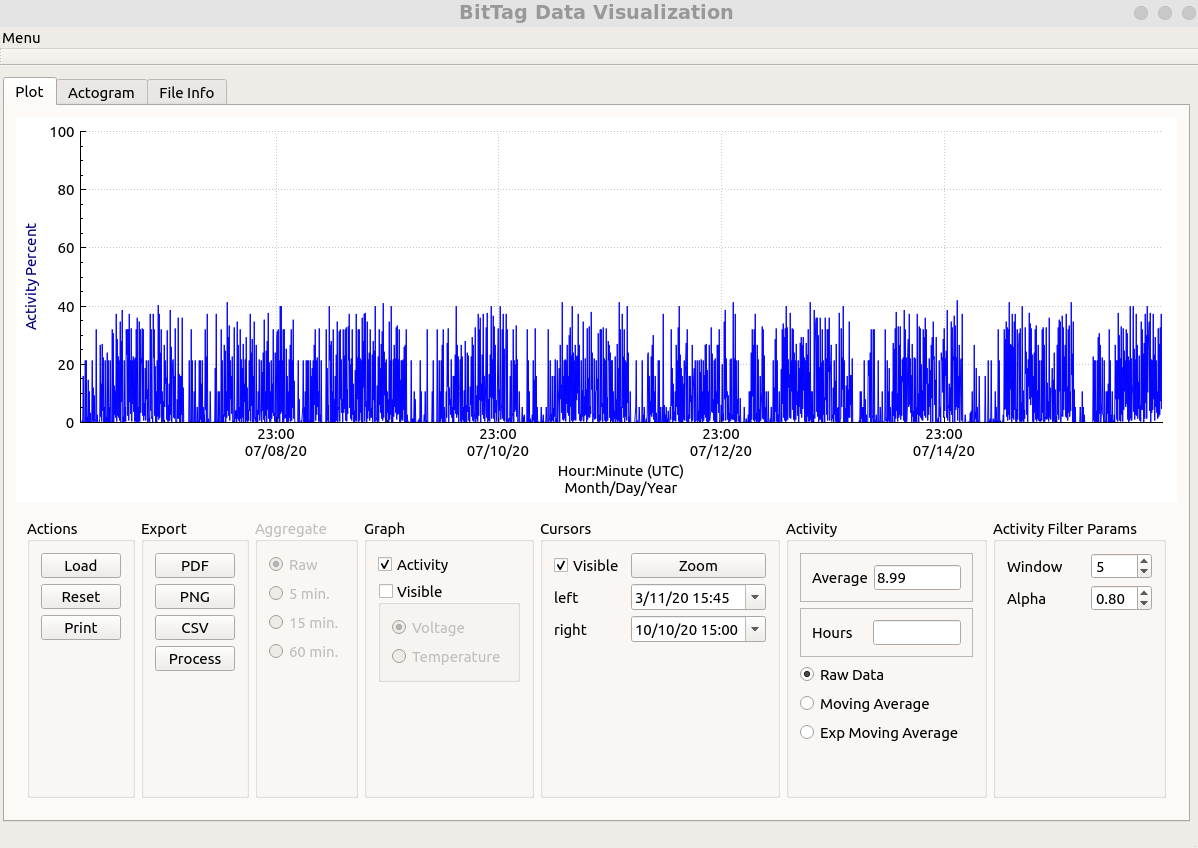

One-week zoomed view in Bit Tag Visualizer

Use Reset to restore the full loaded time span. The activity range control sets the visible activity maximum when the loaded file is a BitTag or BitTagNG activity file.

Cursors

The cursor controls mark an interval of interest. Double-click the plot with the left mouse button to place the left cursor and with the right mouse button to place the right cursor. On macOS, use Control-click when a right-click gesture is not configured. You can also set cursor date and time values directly in the cursor controls.

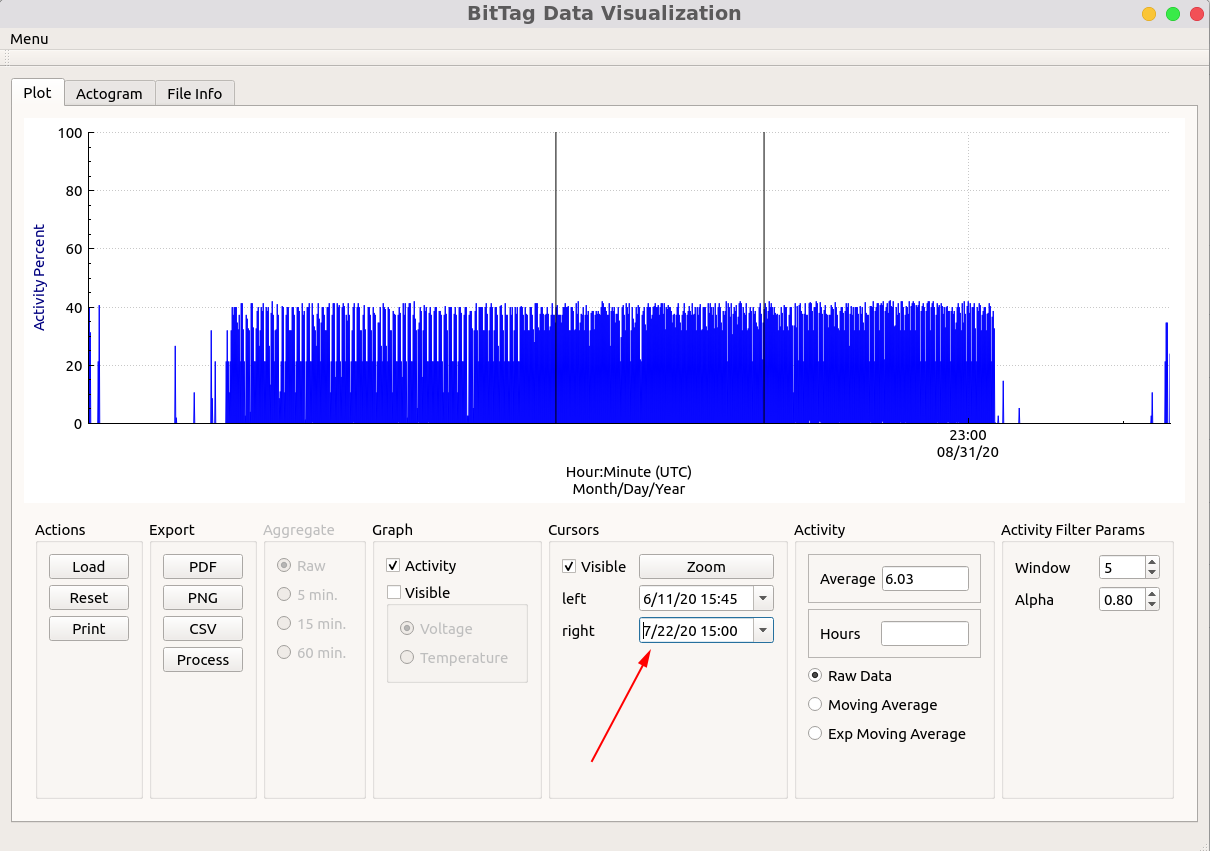

Cursor controls in Bit Tag Visualizer

Select Zoom in the cursor panel to zoom the graph to the interval between the two cursors. CSV export also uses the currently visible graph range, so cursor zoom is a convenient way to select an analysis interval before exporting.

Filter Activity Data

The Low Pass Filter option smooths the activity trace with a Hanning-window FIR filter. Adjust the cutoff control to make the displayed activity curve more or less responsive.

Low-pass activity filtering controls

When filtering is enabled, the plot and actogram use the filtered activity series. CSV export records whether it wrote raw data or low-pass filtered data, including the selected cutoff frequency when the filter is active.

Export Graphs and Data

The export controls operate on the current plot view.

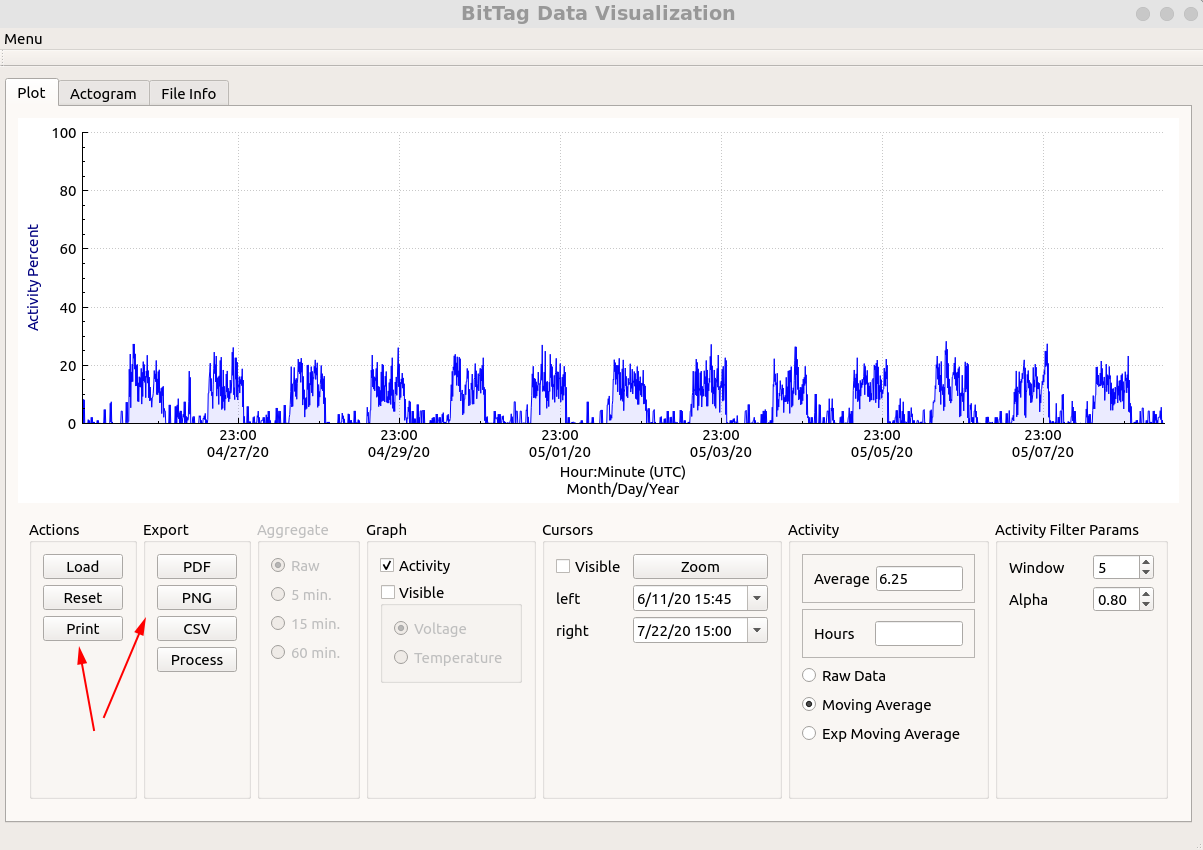

Export controls in Bit Tag Visualizer

Export Output
Print Opens a print preview for the current graph.
PDF Saves the current graph as a PDF file.
PNG Saves the current graph as a PNG image.
CSV Writes data from the current visible time range to CSV.

For BitTag and BitTagNG files, CSV export writes timestamp, offset-adjusted date/time, activity percentage, temperature, and voltage columns when those values are present. For legacy PresTag-style files, CSV export writes pressure, temperature, and voltage columns.

The Read CSV action is a separate interval-processing tool. It reads a CSV file containing start,stop date/time pairs in MM/dd/yyyy hh:mm:ss format using UTC times, then writes the average activity percentage for each interval.

Actograms

The Actogram tab displays BitTag activity as daily rows. Use it to inspect daily rhythms, compare days, and prepare activity figures.

Bit Tag Visualizer actogram

Actograms can be configured with:

  • start day;
  • number of days;
  • single-plot or double-plot display, showing either 24 or 48 hours per row;
  • activity range maximum;
  • UTC offset;
  • title.

The actogram can be exported as PDF or PNG.

Sun Elevation and Light Models

Actograms can be drawn without a light overlay, with natural sun elevation, or with a lab light model loaded from CSV.

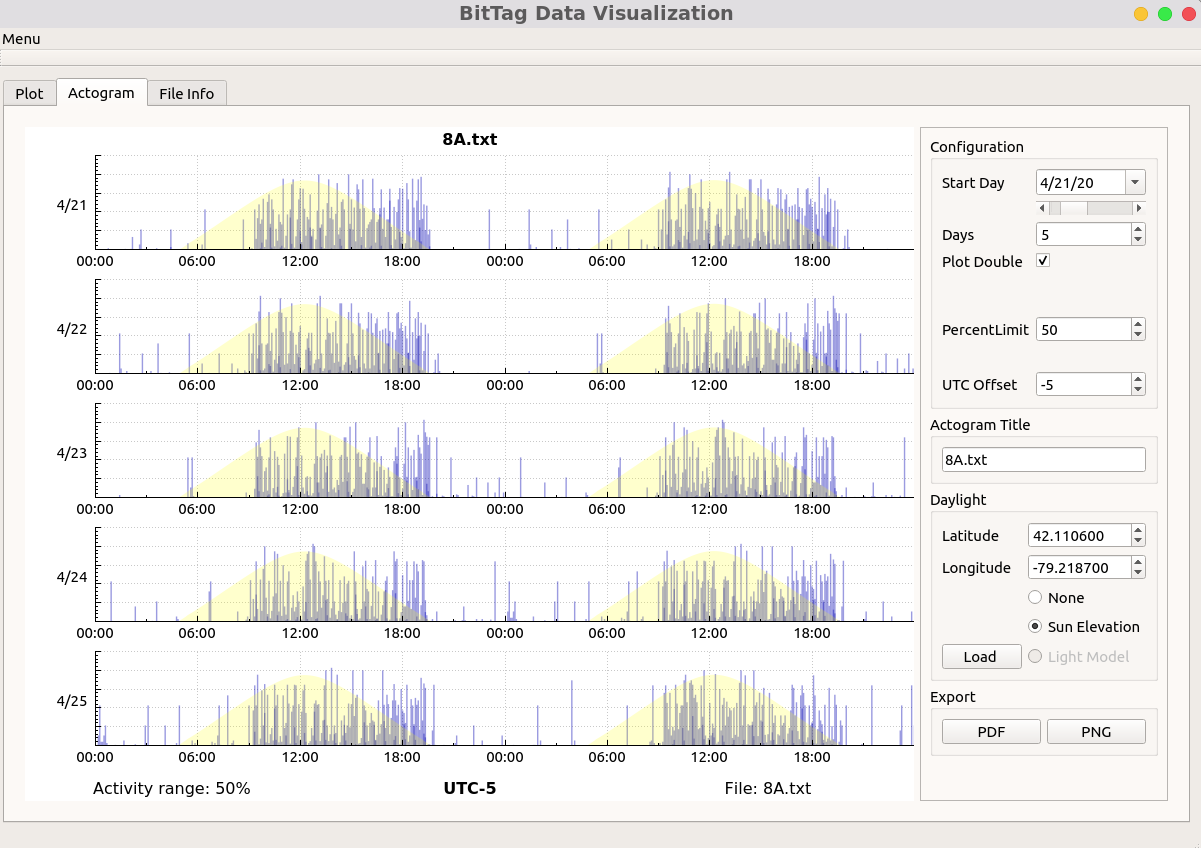

Sun elevation overlay on a Bit Tag Visualizer actogram

Natural light uses the configured latitude and longitude to compute sun elevation for the activity timestamps. A lab light model is useful for captive experiments where lights are controlled independently from local sunrise and sunset. The lab light CSV contains UTC start,stop date/time pairs in MM/dd/yyyy hh:mm:ss format:

04/01/2019 11:00:00,04/01/2019 23:59:59
04/02/2019 11:00:00,04/02/2019 23:59:59
04/03/2019 11:00:00,04/03/2019 23:59:59
04/04/2019 11:00:00,04/04/2019 23:59:59
04/05/2019 11:00:00,04/05/2019 23:59:59

Rows must be ordered, and each stop time must be later than its start time.

Tag Metadata

Legacy text downloads include comment-line metadata describing the experiment and tag configuration. Bit Tag Visualizer shows those lines in the file information area so they can be reviewed alongside the plot.

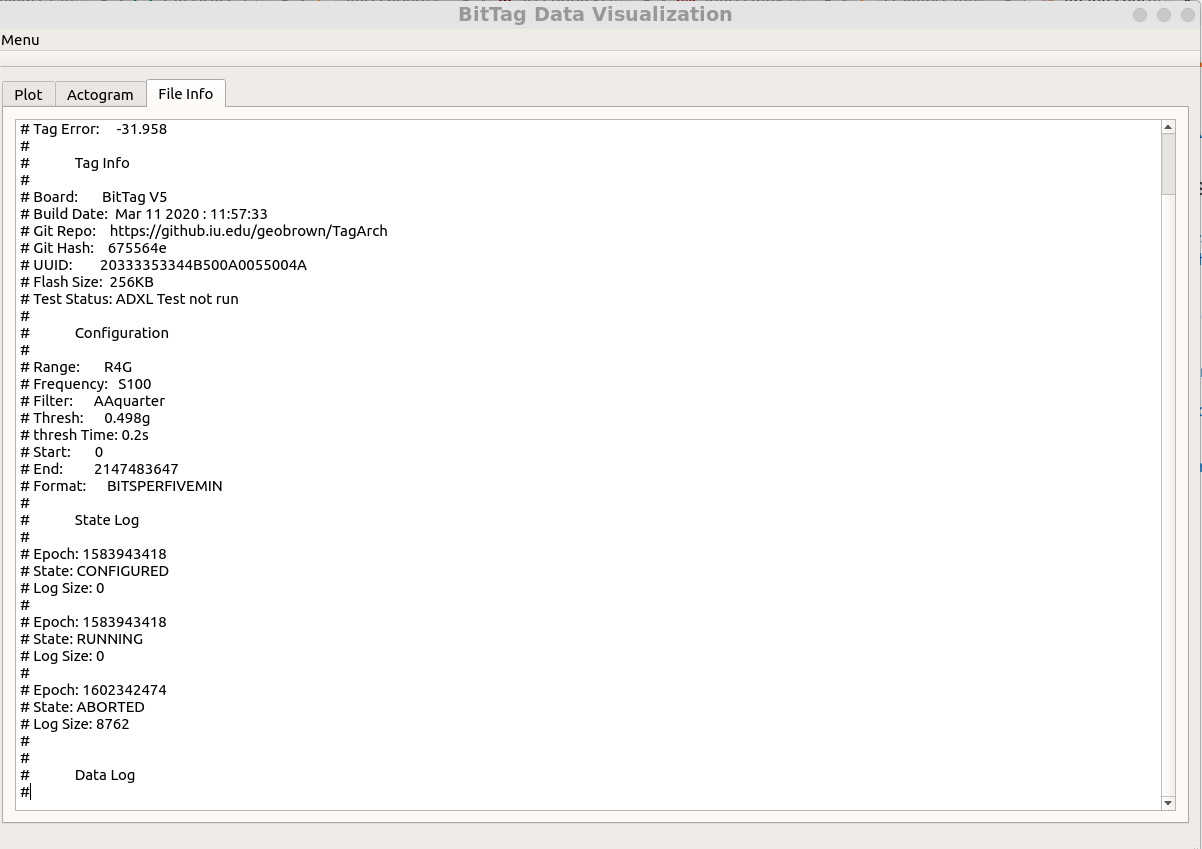

Tag metadata shown in Bit Tag Visualizer

Metadata can include collection periods, activity detection settings, hardware and software versions, and final clock error. Keep this information with figures and exported data when documenting an experiment.

Legacy Pressure Files

When Bit Tag Visualizer detects a legacy PresTag-style file, it changes the primary graph from activity to pressure. The graph range controls switch to hPa values, and the altitude option converts pressure to approximate altitude in meters. Actograms and activity filters are hidden for these files because they are activity-specific views.
